L2TP over IPSEC under Mac OS X (10.11 El Capitan)

  • Go to System Preferences
  • Go to the Network menu.
Screen: Instructions

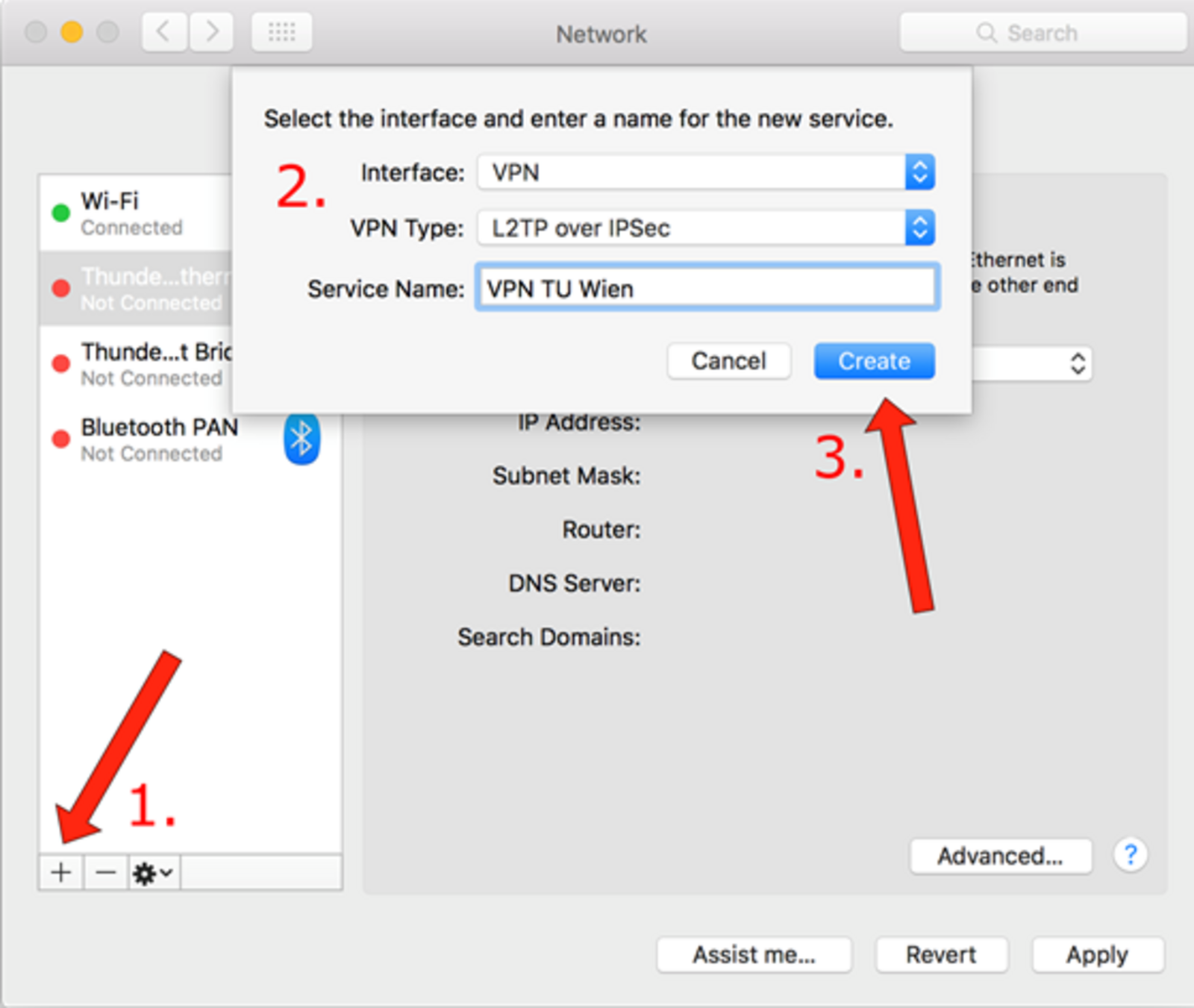

Use the Plus key to create a new connection. Select the VPN connection and the L2TP connection type via IPSec as described above and assign a suitable service name (in the example VPN TU Wien). Then click on...

Screen: Instructions

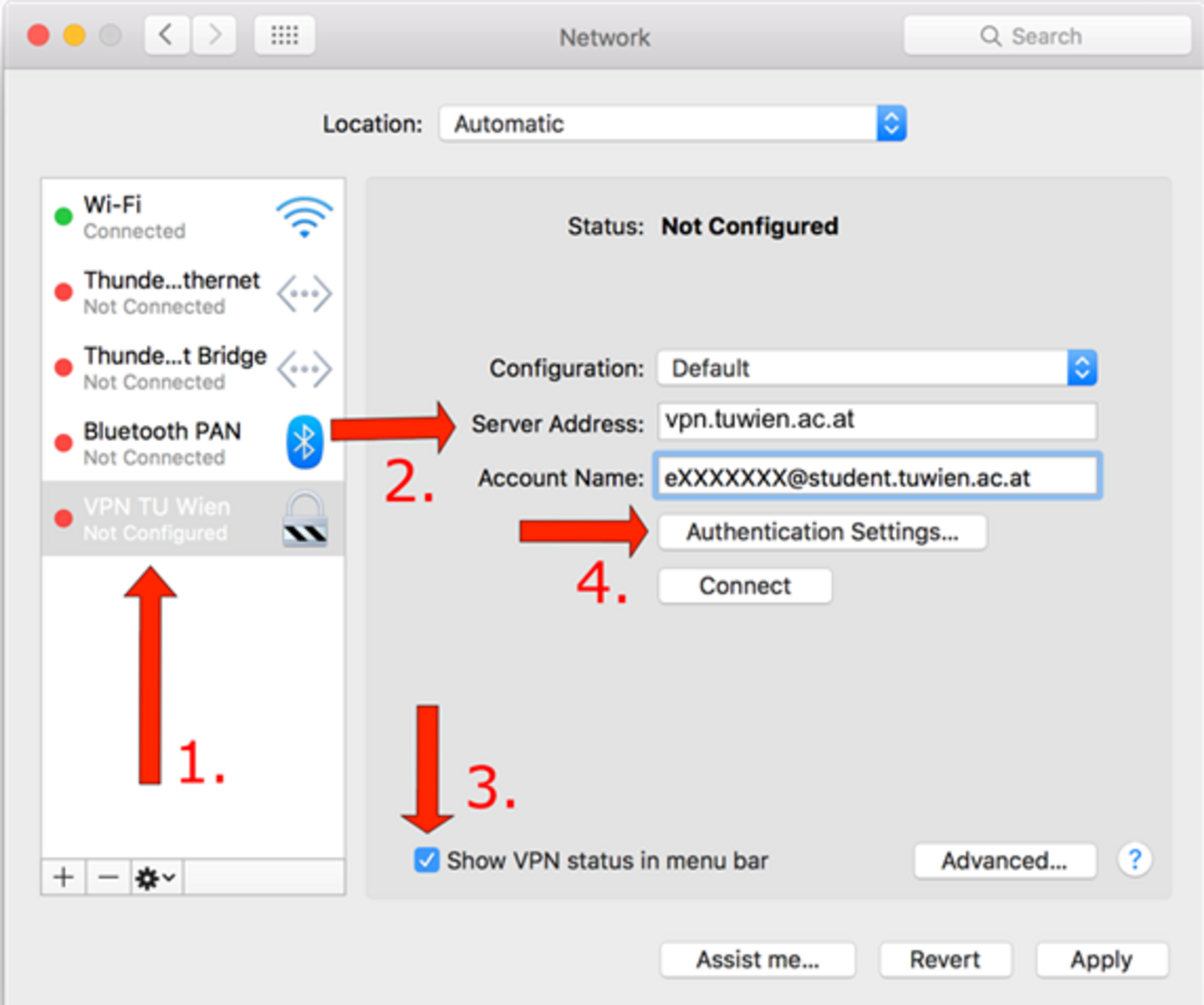

  • Enter the VPN server address for the new connection: vpn.tuwien.ac.at
  • For user name please use your UserID including the appropriate realm:

UserID@tuwien.ac.at
UserID@student.tuwien.ac.at
UserID@vpn.tuwien.ac.at

Screen: Instructions

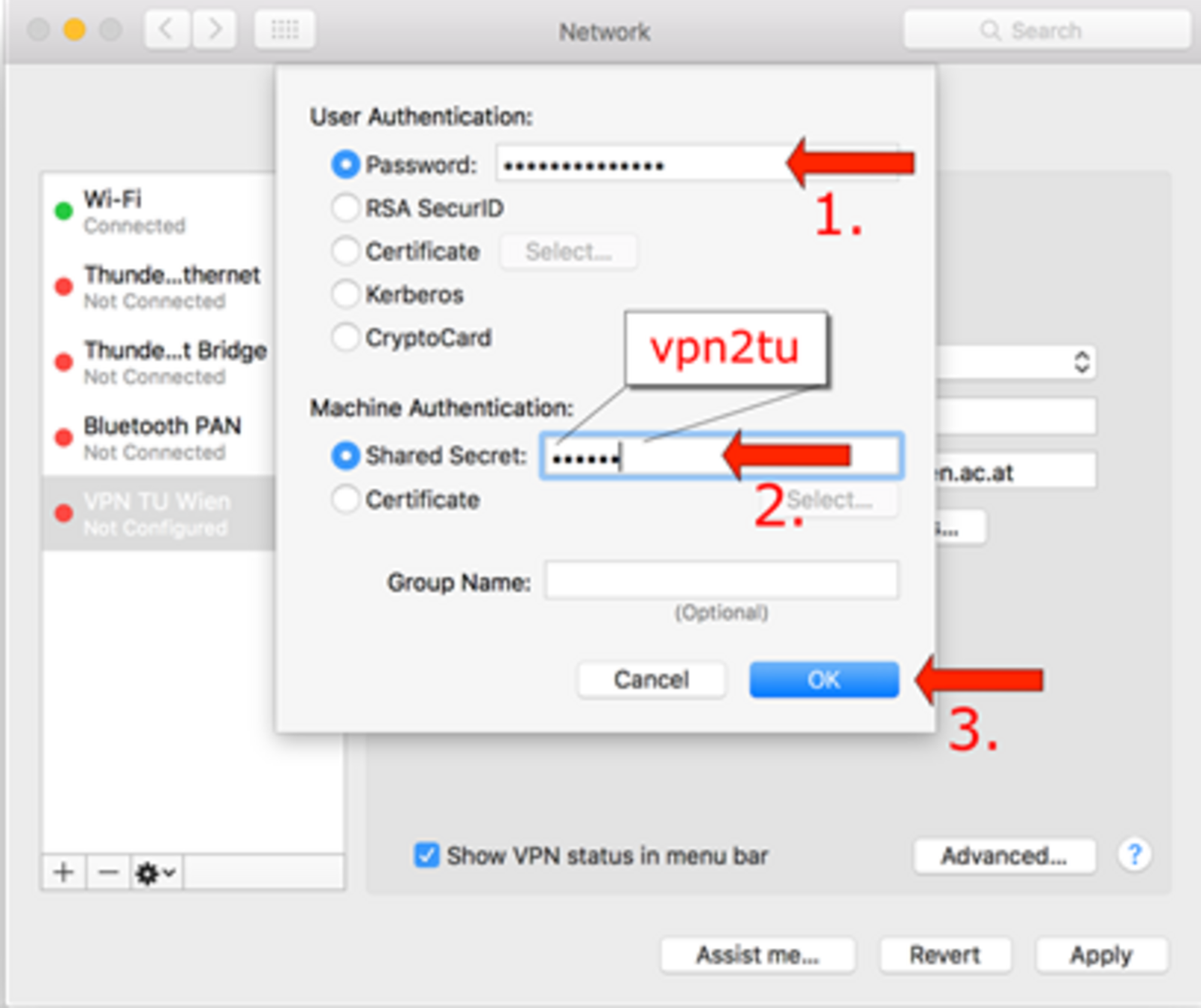

Now click on Authentication Settings. For User Authentication, select Password and enter your personal password. For computer identification...

Screen: Instructions

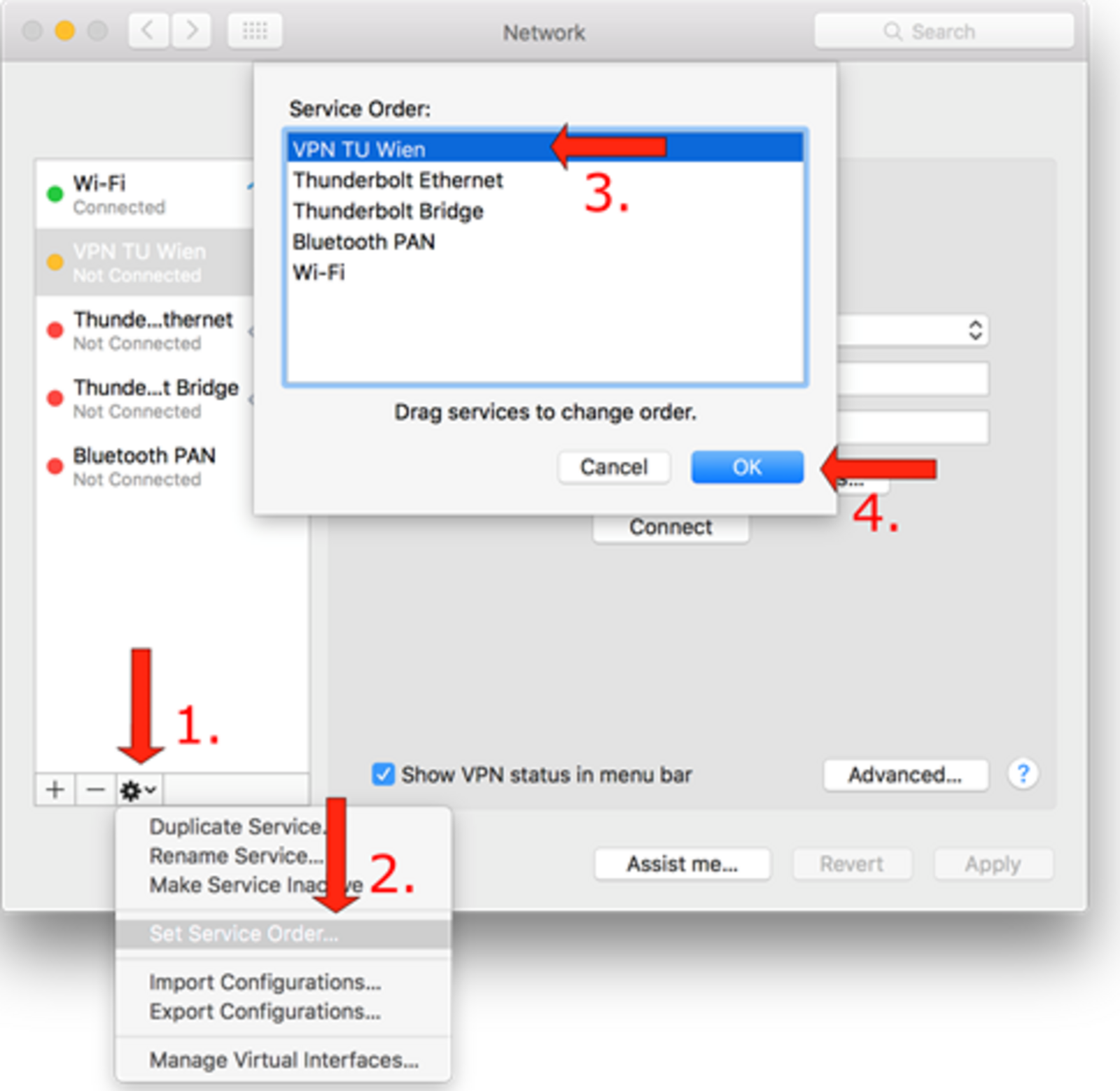

If necessary, the order of the connections (Service Order) in the network must still be adapted. Then click OK.

Screen: Instructions

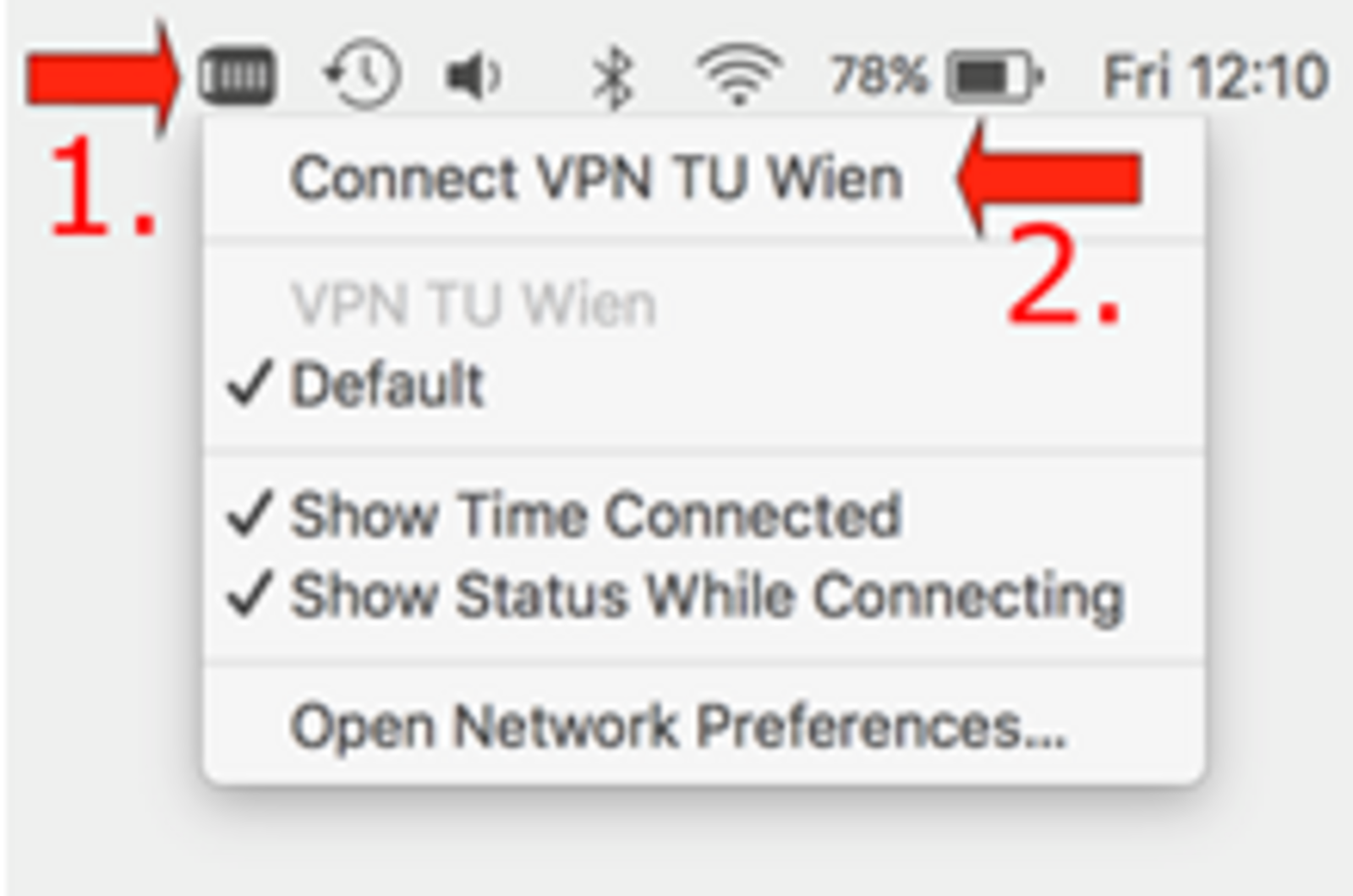

Then click Apply. Now you can connect to the VPN server of the TU Wien at any time via the status bar.

Screen: Instructions
